KAWASAKI



Engine
Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement
998cc
Bore x Stroke
76.0 x 55.0 mm
Compression Ratio
13.0:1
Fuel System
DFI® with four 47mm Keihin throttle bodieswith oval sub-throttles, two injectors per cylinder
Ignition
TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Transmission
Six-speed
Final Drive
Chain
Rake/Trail
25 Deg / 4.2 in.
Front Tire Size
120/70 ZR17
Rear Tire Size
190/55 ZR17
Wheelbase
56.1 in.
Front Suspension / wheel travel
43mm inverted Big Piston Fork (BPF), adjustable rebound and compression damping, spring preload adjustability / 4.7 in.
Rear Suspension / wheel travel
Horizontal back-link with gas-charged shock, stepless, dual-range (low-/high-speed) compression damping, stepless rebound damping, fully adjustable spring preload / 5.5 in.
Front Brakes
Dual semi-floating 310mm petal discs with dual four-piston radial-mount calipers
Rear Brakes
Single 220mm petal disc with aluminum single-piston caliper
Fuel Capacity
4.5 gal.
Seat Height
32.0 in.
Curb Weight
436.6 lbs.
Overall length
81.7 in.
Overall width
28.2 in.
Overall height
43.9 in.
Color Choices
Lime Green/ Metallic Spark Black, Passion Red/ Metallic Spark Black, Metallic Flat Platinum Gray/ Metallic Spark Black




Engine
Type  Horizontal In-line
Cylinders
Engine Stroke  4-Stroke
Cooling Liquid
Valves
16
Valves Per Cylinder 4
Valve Configuration DOHC
Compression Ratio 12.3:1
Starter  Electric
Fuel Type Gas
Transmission Type    Manual
Number Of Speeds  6
Primary Drive (Rear Wheel)  Chain
Front Tire (Full Spec) 120/70 ZR17
Rear Tire (Full Spec) 190/50 ZR17
Front Brake Type Dual Hydraulic Disc
Rear Brake Type Hydraulic Disc
Wheelbase (in/mm)  58.3 / 1480.8
Fuel Capacity (gal/l)  5.8 / 2.6

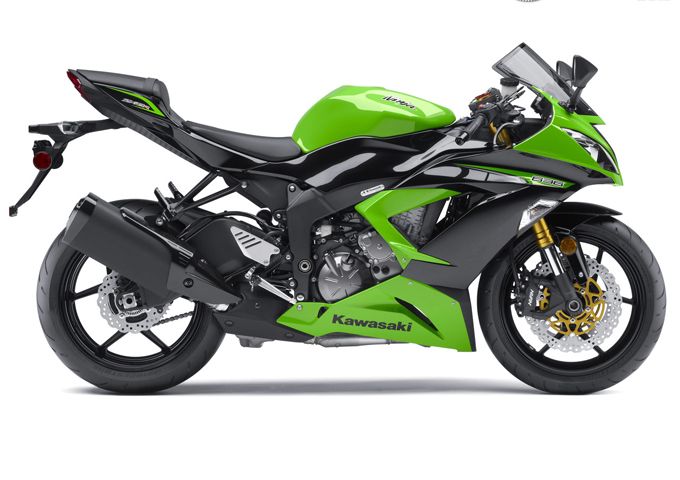

Engine
Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement
636 cc
Bore x Stroke
67.0 x 45.1mm
Compression Ratio
12.9:1
Fuel System
DFI® with four 38mm Keihin throttle bodies and oval sub-throttles
Ignition
TCBI with digital advance
Transmission
6-Speed
Final Drive
520 series X-ring chain
Rake/Trail
23.5 degrees / 4.0 in.
Frame Type
Aluminum perimeter
Front Tire Size
120/70-ZR17
Rear Tire Size
180/55-ZR17
Wheelbase
54.9 in.
Front Suspension / wheel travel
41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping, adjustable spring preload / 4.7 in.
Rear Suspension / wheel travel
Bottom-link Uni-Trak® with gas-charged shock, stepless compression and rebound damping adjustments, fully adjustable spring preload / 5.3 in.
Front Brakes
Dual 310mm petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers
Rear Brakes
Single 220mm petal rotor with single-piston caliper
Fuel Capacity
4.5 gal.
Seat Height
32.7 in.
Curb Weight
423.4 lbs.
Overall length
82.1 in.
Overall width
27.8 in.
Overall height
43.9 in.
Color Choices
Pearl Flat Stardust White/Flat Ebony, Metallic Spark Black/Flat Ebony, Lime Green/Metallic Spark Black


Engine
Four-stroke, liquid-cooled, DOHC, parallel twin
Displacement
249cc
Bore x Stroke
62.0 x 41.2mm
Compression Ratio
11.6:1
Cooling
Liquid
Carburetion
Keihin CVK30 x 2
Ignition TCBI with digital advance
Transmission
Six-speed
Final Drive
O-ring chain
Frame Type Semi-double cradle, high-tensile steel
Wheelbase 55.1 in.
Rake/Trail
25 Deg / 4.2 in.
Front Tire Size
110/70-17
Rear Tire Size
130/70-17
Wheelbase
56.1 in.
Front Suspension / wheel travel
37mm hydraulic telescopic fork / 4.7 in.
Rear Suspension / wheel travel
Bottom-link Uni-Trak® with 5-way adjustable preload / 5.1 in.
Front Brakes
Single 290mm hydraulic petal disc with two-piston caliper
Rear Brakes
Single 220mm petal disc with two-piston caliper
Fuel Capacity
4.8 gal.
Seat Height
30.5 in.
Curb Weight
374.9 lbs.
Overall length
82.1 in.
Overall width
28.1 in.
Overall height
43.7 in.
Color
Candy Lime Green, Metallic Spark Black, Passion Red/Metallic Spark Black

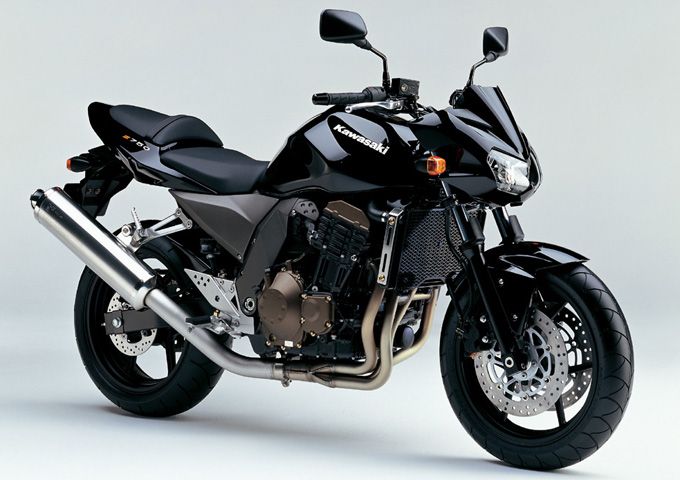

Engine
Liquid cooled, four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity
748
Bore x Stroke
68.4 x 50.9 mm
Compression Ratio
11.3:1
Induction
Fuel injection: ? 32 mm x 4 (Keihin) with oval sub-throttles
Ignition
Digital  /  electric
Max Power
77.7 kW 106 hp @ 10500 rpm
Max Torque
78 Nm 8.0 kg-fm @ 8300 rpm
Transmission
6 Speed  /  chain
Frame
Tubular backbone (with engine sub-frame), high-tensile steel
Rake/Trail
24.5° / 103 mm
Front Suspension
41 mm inverted fork with rebound damping and spring preload adjustability. 120mm wheel travel
Rear Suspension
Bottom-Link Uni-Trak with gas-charged shock Stepless 7-way. 124mm wheel travel
Front Brakes
2x 300mm discs 2 piston caliper
Rear Brakes
Single 200mm disc 1 piston caliper
Front Tyre
120/70 -17
Rear Tyre
180/55 –17
Dry-Weight
203 kg
Fuel Capacity
18.5 Litres
Consumption  average
19.2 km/lit
Standing ? Mile
11.2 sec
Top Speed
233.1 km/h


Engine
Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement
1,043cc
Bore x Stroke
77.0 x 56.0mm
Compression Ratio
11.8:1
Fuel Injection
DFI® with four 38mm Keihin throttle bodies, oval sub-throttles
Ignition
TCBI with digital advance
Transmission
Six-speed
Final Drive
X-ring chain
Rake/Trail
24.5 degrees / 4.0 in.
Frame type Aluminum Backbone
Front Tire Size
120/70 ZR17
Rear Tire Size
190/50 ZR17
Wheelbase
56.5 in.
Front Suspension / wheel travel
41 mm inverted SFF-BP fork with stepless compression and rebound damping and spring preload adjustability / 4.7 in.
Rear Suspension / wheel travel
Horizontal monoshock with stepless rebound damping, remotely adjustable spring preload / 4.8 in.
Front Brakes
Dual 310mm petal-type rotors with radial-mount four-piston monobloc calipers and ABS
Rear Brakes
Single 250mm petal-type rotor with single-piston caliper and ABS
Fuel Capacity
4.5 gal.
Seat Height
32.1 in.
Curb Weight
487.3 lbs.
Overall length
80.5 in.
Overall width
31.1 in.
Overall height
41.5 in.
Color Choices
Golden Blazed Green / Metallic Graphite Gray




Engine
Liquid-cooled, 2-stroke, Single cylinder
Displacement
148 cm3
Bore x Stroke
59.0 mm x 54.4 mm
Compression Ratio
7.2:1
Performance Max 22.1 kW {30.0 PS} @ 10,500 rpm
Performance Torque 21.6 N?m {2.20 kgf?m} @ 9,000 rpm
Fuel System
MIKUNI VM28
Ignition
Magnito DC-CDI
Transmission
6-speed, Constant mesh, Return shift
Final Drive
Chain
Rake/Trail
25 Deg / 4.2 in.
Front Tire Size
90/90-17 49S Tube type
Rear Tire Size
110/80-17 57S Tube type
Wheelbase
56.1 in.
Front Suspension
Telescopic fork
Rear Suspension
Mono-shock with swingarm
Front Brakes
Disc brake, 2-piston calipers
Rear Brakes
Disc brake, 2-piston calipers
Fuel Capacity
11.5 Litres
Seat Height
780 mm
Curb Weight
436.6 lbs.
Overall length
1,965 mm
Overall width
725 mm
Overall height
1,075 mm

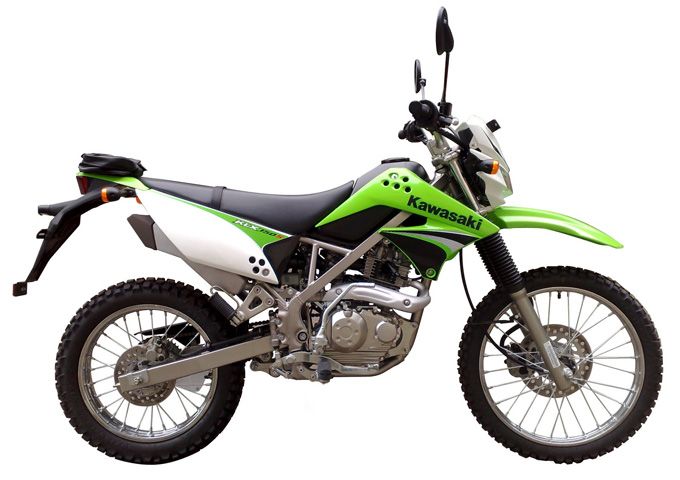

Engine
Air-cooled, 4-stroke, Single cylinder, SOHC, 2 valves
Displacement
144 cm3
Bore x Stroke
58.0 mm X 54.4 mmx 50.6 mm
Compression Ratio
9.5:1
Maximum Power 8.6 kW {11.7 PS} @ 8,000 rpm
Maximum Torque 12.0 N?m {1.2 kgf?m} @ 6.500 rpm
Fuel System
Carburetor: KEIHIN NCV24
Ignition
DC-CDI
Transmission
5-speed, Constant mesh, Return shift
Starting
Kick starter and electric starter
Front Tire Size
70/100-19M/C 42P Tube
Rear Tire Size
90/100-16M/C 51P Tube
Wheelbase
1,285 mm
Front Suspension / wheel travel
Telescopic Fork
Rear Suspension / wheel travel
Swingarm (Uni-Trak)
Frame Type Tubular, Semi-double cradle
Front Brakes
Single disc
Rear Brakes
Single disc
Fuel Capacity
7.0 litres
Seat Height
835 mm
Curb Weight
108 kg
Overall length
2,005 mm
Overall width
765 mm
Overall height
1,080 mm

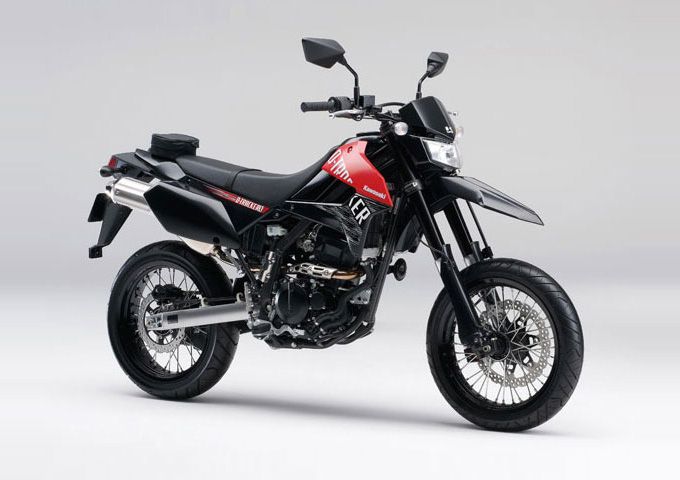

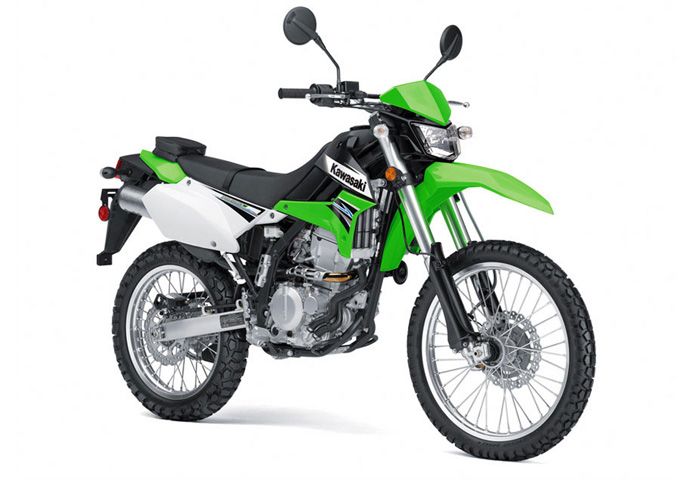

Engine
Liquid-cooled, 4-stroke, Single cylinder, DOHC, 4 valves
Displacement
249 cm3
Bore x Stroke
72.0 mm X 61.2 mm
Compression Ratio
11.0:1
Maximum Power 11.0 kW {15.0 PS} @ 8,000 rpm
Maximum Torque 16.9 N·m {1.7 kgf·m} @ 3,000 rpm
Fuel System
KEIHIN CVK 34
Ignition
CDI
Transmission
6-speed, Constant mesh, Return shift
Starting
Electric starter motor
Front Tire
3.00-21 51P Tube type
Rear Tire
4.60-18 63P Tube type
Wheelbase
1,435 mm
Front Suspension / wheel travel
Telescopic fork
Rear Suspension / wheel travel
Swingarm (Uni-Trak)
Frame Type Tubular, Semi-double cradle
Front Brakes
Single disc
Rear Brakes
Single disc
Fuel Capacity
7.2 litres
Seat Height
885 mm
Overall length
2,135 mm
Overall width
885 mm
Overall height
1,210 mm

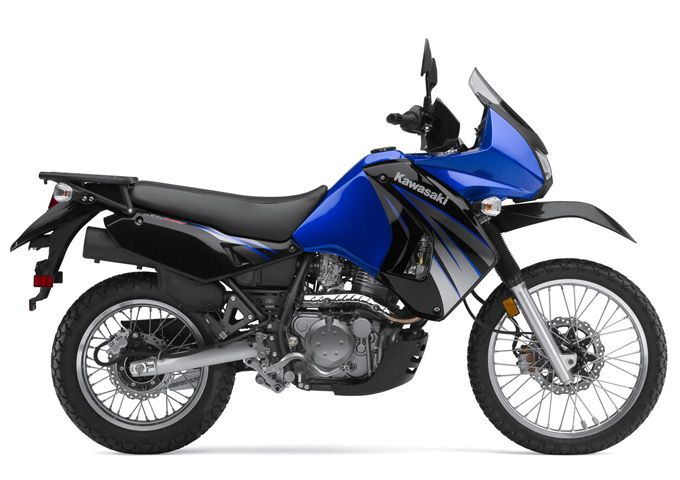

Engine
Four-stroke, DOHC, four-valve single
Displacement
651cc
Bore x Stroke
100.0 x 83.0mm
Compression Ratio
9.8:1
Fuel System
DFI® with four 47mm Keihin throttle bodieswith oval sub-throttles, two injectors per cylinder
Ignition
Electric CDI
Transmission
Five-speed
Final Drive
Chain
Rake/Trail
28 degrees / 4.4 in.
Front Tire Size
190/55 ZR17
Rear Tire Size
130/80x17
Frame Type
Semi-double cradle, high-tensile steel
Front Suspension / wheel travel
41mm telescopic fork / 7.9 in.
Rear Suspension / wheel travel
Uni-Trak® single-shock system with 5-way preload and stepless rebound damping / 7.3 in.
Front Brakes
Single 280mm petal-type disc, two-piston caliper
Rear Brakes
Single 240mm disc, single-piston caliper
Fuel Capacity
6.1 gal.
Seat Height
35.0 in.
Curb Weight
432 lbs.
Overall length
90.4 in.
Overall width
37.8 in.
Overall height
53.1 in.
Color Choices
Candy Lime Green/Ebony

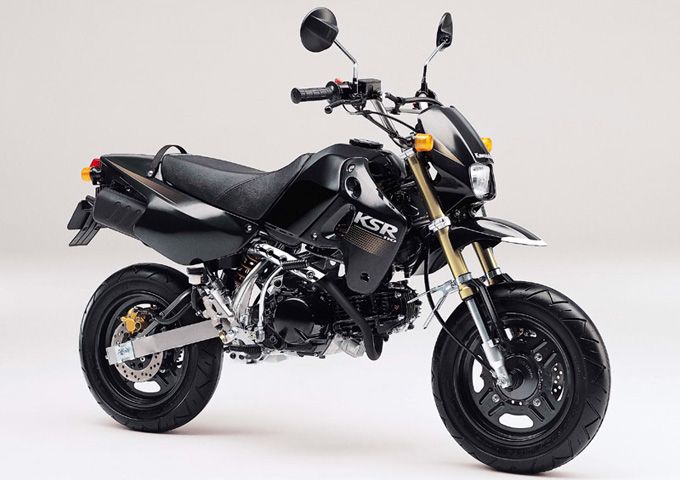

Engine
Air-cooled, 4-stroke, Single cylinder, SOHC, 2 valves
Displacement
111 cm3
Bore x Stroke
53.0 mm x 50.6 mm
Compression Ratio
9.5 :1
Fuel System
Carburetor: KEIHIN PB18
Ignition
Battery and coil (transistorized)
Transmission
4-speed, Constant mesh, Return shift
Maximum power
5.8 kW {7.9 PS} @ 8,000 rpm
Maximum torque 8.1 N?m {0.82 kgf?m} @ 6,000 rpm
Starting
Kick
Front Tire
100/90-12 49J Tubeless
Rear Tire
100/90-12 49J Tubeles
Frame Type
Tube backbone
Front Suspension / wheel travel
Telescopic fork (upside-down)
Rear Suspension / wheel travel
Swingarm
Front Brakes
Single Disc
Rear Brakes
Single Disc
Fuel Capacity
7.3 litres
Seat Height
750 mm
Overall length
1,670 mm
Overall width
705 mm
Overall height
995 mm


Engine
 4-Step, DOHC, 4 valves
Cooling System
 Liquid
Number of cylinder & Content
 1 stroke & 249cc
Step x Diameter
 72.0 x 61.2 mm
Comparison of Compression
 11:1
Maximum power
 18.0 kW / 9000 rpm
Max. Torque
 21 Nm / 7000 rpm
Injection system
 Keihin F001
Starter System  Electric Starter
Transmission type
 6 speed return
Gear final comparison
 2.786 (39/14)
Number of Gear Ratio
 7.429 in Top Gear
Ignition system
 TIS
Front Suspension
 Telescopic
Rear Suspension
 Mono Shock
Length x Width x Height
  2130 X 795 X 1125 mm
Wheel bearing distance
 1,420 mm
Lowest distance to the ground
 265 mm
Front brake
 Hidrolic, Single-Disc
Rear brake
 Hidrolic, single-Disc
Front Wheel
 70/100-19
Rear Wheel
 90/100-16
Weight empty 139 kg


Engine

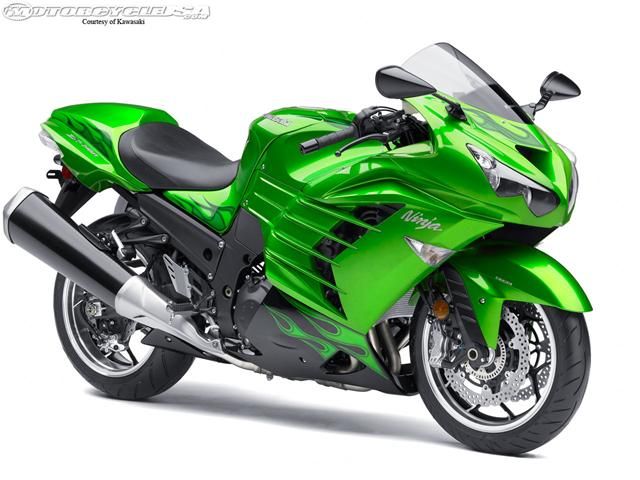

In-line four, four-stroke
Displacement
1352.00 ccm (82.50 cubic inches)
Bore x Stroke
84.0 x 61.0 mm (3.3 x 2.4 inches)
Compression Ratio
10.7:1
Fuel System
Injection. 40 mm x 4
Ignition
Digital
Power 152.88 HP (111.6 kW)) @ 8600 RPM
Torque 136.00 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 6200 RPM
Transmission
Six-speed
Fuel control
DOHC
Ignition
Digital
Cooling system
Liquid
Frame type
Monocoque, pressed-aluminium
Front Suspension / wheel travel
43 mm inverted fork with adjustable rebound damping and spring preload / 113 mm (4.4 inches)
Rear Suspension / wheel travel
Bottom-Link Uni-Trak with gas-charged shock, Tetra-Lever. / 136 mm (5.4 inches)
Front Tyre 120/70-ZR17
Rear Tyre 190/50-ZR17
Front Brakes
Double disc. Semi-floating petal discs Dual radial-mount, opposed 4-piston, 4-pad. Optional ABS
Rear Brakes
Double disc. Semi-floating petal discs Dual radial-mount, opposed 4-piston, 4-pad. Optional ABS
Fuel Capacity
22.00 litres (5.81 gallons)
Seat Height
815 mm (32.1 inches) If adjustable, lowest setting.
Power/weight ratio
0.5096 HP/kg
Overall length
2,230 mm (87.8 inches)
Overall width
790 mm (31.1 inches)
Overall height
1,345 mm (53.0 inches)
Color Choices
Arabian red/black


Engine
Liquid cooled, four stroke, parallel twin, DOHC, 4 valves per cylinder.
Bore x Stroke
83 X 60mm
Compression Ratio
11.3;1
Fuel System

Ignition
Digital TCBI  /  electric
Power 53 kW  72.1 PS @ 8500 rpm
Torque 66 Nm  6.7 mkg @ 7000 rpm
Transmission
6 Speed  /  chain
Frame
 Diamond, high-tensile steel
Front Suspension / wheel travel
41 mm telescopic fork, 120mm wheel travel.
Rear Suspension / wheel travel
Offset laydown single-shock with adjustable preload, 130mm wheel travel.
Front Tyre 120/70ZR17
Rear Tyre 160/60ZR17
Front Brakes
2x 300mm discs 2 piston calipers
Rear Brakes
Single 220mm disc 1 piston caliper
Fuel Capacity
15.5 Litres
Dry Height
178 kg


Engine
Liquid cooled, four stroke, parallel twin, DOHC, 4 valves per cylinder
Bore x Stroke
83 X 60mm
Compression Ratio
10.8:1
Power 53 kW 72.1 hp @ 8500 rpm
Torque 64 Nm 6.5 kg-fm @ 7000 rpm
Ignition  /  Starting Digital  /  electric
Transmission
6 Speed  /  chain
Frame
Perimeter, high-tensile steel
Front Suspension / wheel travel
41 mm telescopic fork, 125 mm 4.9 in. wheel travel
Rear Suspension / wheel travel
Offset laydown single-shock with adjustable preload, 130 mm 5.1 in wheel travel
Front Tyre 120/70ZR17
Rear Tyre 160/60ZR17
Front Brakes
2x 300mm discs 2 piston Calipers
Rear Brakes
Single 220mm disc 1 piston Caliper
Fuel Capacity
16 litres  / 3.5 gal.
Seat Height
805 mm / 31.7 in
Wet-Weight
204 kg  / 449.7 lb

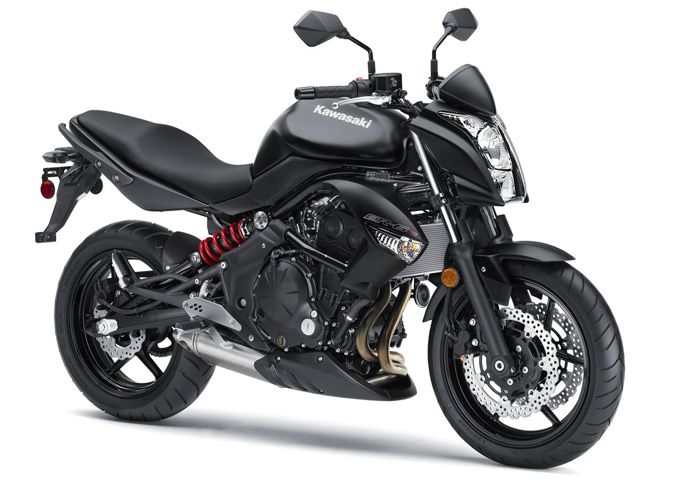

Engine
Liquid cooled, four stroke, parallel twin, DOHC, 4 valves per cylinder
Bore x Stroke
83 X 60mm
Compression Ratio
10.6:1
Power 47 kW 64 hp @ 8000 rpm
Torque 61 Nm 6,2 kg-m @ 6800 rpm
Ignition  /  Starting Digital CBI  /  electric
Transmission
6 Speed  /  chain
Frame
Diamond, high-tensile steel Rake/Trail 25°/108 mm
Front Suspension / wheel travel
41 mm inverted telescopic fork with stepless (right-side) adjustable rebound damping and adjustable preload
Rear Suspension / wheel travel
Offset laydown single-shock with 13-way adjustable rebound damping and 7-way adjustable preload
Front Tyre 120/70ZR17
Rear Tyre 160/60ZR17M
Front Brakes
2x 300mm discs 2 piston calipers
Rear Brakes
Single 220mm disc 1 piston caliper
Fuel Capacity
19 Litres
Seat Height
840 mm
Dry Weight
181 kg
Top Speed
197 km/h


Engine
Liquid-cooled, 4-stroke, V-2 cylinder, SOHC, 8 valves
Bore x Stroke
62.0 mm x 41.4 mm
Compression Ratio
12.0:1
Power 23.0 kW {31.3 PS} @ 12.500 rpm
Torque 22.2 N?m {2.3 kgf?m} @ 9,500 rpm
Ignition  /  Starting Battery and coil (transistorized) / Electric starter
Transmission
6-speed, Constant mesh, Return shift
Frame
Tubular, Double cradle
Front Suspension
Telescopic fork
Rear Suspension
Swingarm
Front Tyre 120/80-17M/C 61S Tubeless
Rear Tyre 160/80-15M/C 74S Tubeless
Front Brakes
Single disc
Rear Brakes
Drum brake
Fuel Capacity
13 litres
Seat Height
690 mm
Dry Weight
171 kg
Overall length
2,355 mm
Overall width
775 mm
Overall height
1,075 mm
Wheelbase
1,620 mm

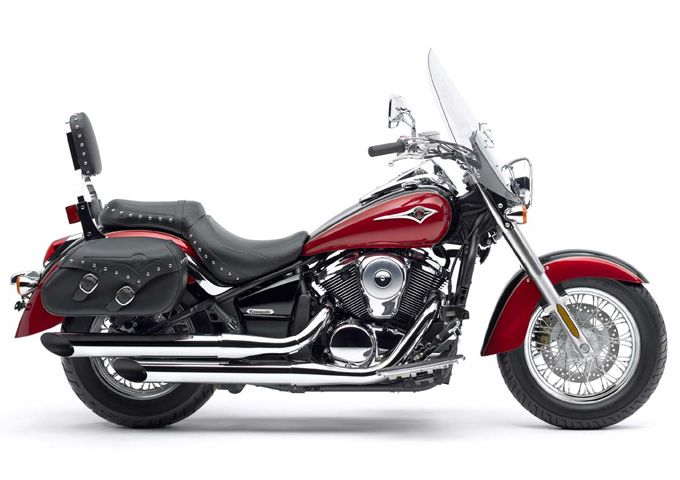

Engine
Four-stroke, SOHC, four valves per cylinder V-twin
Bore x Stroke
88 mm x 74.2 mm
Compression Ratio
9.5:1
Cooling Liquid-Cooled
Fuel System DFI with dual 34 mm Keihin throttle bodies
Ignition  /  Starting TCBI with Electronic Advance / Electric
Transmission
Five Speed
Front Suspension
41 mm hydraulic telescopic fork / 5.9 in.
Rear Suspension
Uni-Trak swingarm / 4.1 in.
Front Tyre 130/90-16
Rear Tyre 180/70-15
Front Brakes
300 mm hydraulic disc
Rear Brakes
270 mm hydraulic disc
Fuel Capacity
5.3 gal.
Seat Height
26.8 in.
Dry Weight
619.6 lbs. (Wet)
Wheelbase
64.8 in.

HONDA



Honda CBR150R Specifications
* Engine: 149.4cc, Liquid Cooled, 4-valve, DOHC, 4-stroke engine
* Power: 17.57 BHP @ 10,500 RPM
* Torque: 12.66 Nm @ 8500 RPM
* Transmission: 6 -speed manual
* Top Speed: 134 km/h
* 0-100kmph: 11.95 seconds
* Fuel Consumption: 35-40 km/l
* Fuel Type: Petrol
* Frame Type: Twin Tube Diamond
* Suspension: Telescopic Fork (Front), Monoshock (Rear)
* Tyres: 100/80/17 (Front), 130/70/17 (Back)
* Brakes: 276 mm disc (Front), 220 mm disc (Back)
* Ignition: Digital ECU based
* Battery: 12 V- 6 Ah/ Maintenance Free
* Headlamp: 12 V 60/55W H4

Honda CBR150R Dimensions
* Length X Width X Height: 2000 mm X 825 mm X 1120 mm
* Wheelbase: 1305 mm
* Ground Clearance: 190 mm
* Fuel Tank Capacity: 13-litres
* Kerb weight: 138 kgs


ENGINE Type: Air-cooler, 4 cycle engine OHC
Bore & Stroke: 50.0 x 55.0mm
Engine Displacement:  108.0cc
Compression Ratio: 9.5:1
Starter System:  Kick Starter / Electric Starter
Lubricant Capacity:  0.8 liter

TRANSMISSION Clutch:  Automatic and dry disc type
Type:  V-Matic
Belt Ratio:  2.68:1 – 0.85:1
Reduction Ratio:  10.625

ELECTRICAL Ignition System:  DC – CDI
Battery:  12V – 3.5AH

DIMENSIONS:
Overall Length:  1,859 mm
Overall Width:  676 mm
Overall Height:  1,053 mm
Wheel Base:  1,240 mm
Ground Clearance:  156 mm

CHASIS Type:  Spine
Front Suspension Travel:  Telescopic
Back Suspension Travel:  Monoshock
Dry Weight (Without oil and fuel):  86.4kg
Dry Weight (With oil and fuel):  89.2kg
Fuel Tank Capacity:  3.5 Liter
Front Tire Dimension:  80/90 – 14M/C 40P
Back Tire Dimension:  90/90 – 17M/C 46P
Caster Angle:  26° 30’
Trail:  83 mm

PERFORMANCE
Maximum Horsepower:  8.22PS / 8000rpm
Torque Maximum:  0.84kgf.m / 6000rpm

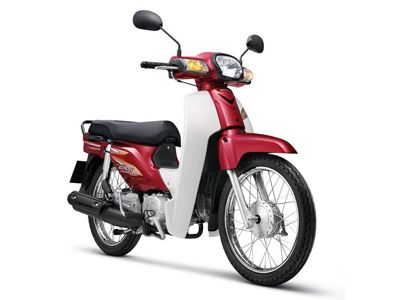

Honda EX5 DREAM 100 E/S


ENGINE
Type Air-cooler, 4 cycle engine OHC
Bore & Stroke 50 x 49.5mm
Engine Displacement 97.1cc
Compression Ratio 9:1
Starter System Kick Starter
Electric Starter
Lubricant Capacity 0.9 liter

TRANSMISSION
Clutch Automatic and wet multi-disc
Delivery Continuous 4-speed transmission
GEAR RATIO
First Gear 2.833 (34/12)
Second Gear 1.705 (29/17)
Third Gear 1.238 (26/21)
Fourth Gear 0.958 (34/24)
Primary Reduction Ratio 4.058 (69/17)
Final Reduction Ratio 2.571 (36/14)

ELECTRICAL
Ignition System CDI
Battery 12V-4AH (Kick Starter)
12V-5AH (Electric Starter)
DIMENSIONS
Overall Length 1,833mm
Overall Width 672mm
Overall Height 1,033mm
Wheel Base 1,183mm

CHASIS
Type Spine
Front Suspension Travel Telescopic 100mm
Back Suspension Travel Swingarm 61mm
Fuel Tank Capacity 3.5 Liter
Front Tire Dimension 60/100 – 17M/C 33P
Back Tire Dimension 70/90 – 17M/C 38P
Caster Angle 26° 30’
Trail 75 mm

PERFORMANCE
Maximum Horsepower 8.9PS/ 8000rpm(DIN)
Torque Maximum 0.93kgf.m/6000rpm(DIN)

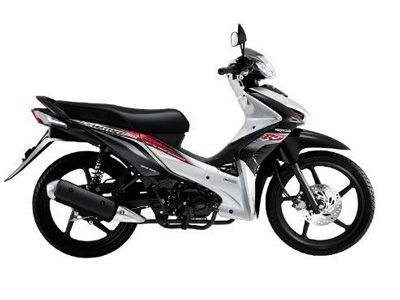

Honda WAVE DASH (ELECT)


ENGINE
Engine Type
Air Cooled, 4 Cycle Engine OHC
Bore & Stroke
50.0 x 55.6mm
Displacement
109.1cc
Compression Ratio
9.0:1
Engine Starter System
Kick Starter (RS)
Electric Starter (RSR)
Muatan Minyak Pelincir 1.0 liter
1.0 liter
Cluth
Automatic Centrifugal & Multiplate Wet Clutch
Transmission
4 speed constant mesh
GEAR RATIOS: 1ST 2.615(34/13)
GEAR RATIOS: 2ND 1.555(28/18)
GEAR RATIOS: 3RD 1.136(25/22)
GEAR RATIOS: 4TH
0.916(22/24)
Primary reduction ratio
4.059 (69/17)
Final Reduction Ratio
2.642 (37/14)

ELECTRICAL
Ignition
DC-CDI
Battery
12V-2.5AH (Kick Starter)
12V-3.0AH (Electric Starter)

DIMENSIONS
Overall length
1885mm
Overall width
709mm
Overall height
1071mm
wheelbase
1221mm

PERFORMANCE
Maximum Horse Power
6.22KW / 7500rpm
Maximum Torque
8.59Nm / 5500rpm

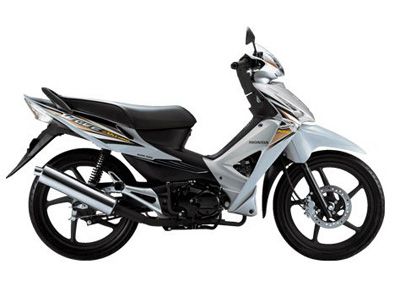

Honda WAVE 110RS K/CAST
Honda WAVE 110RS K/SPOKE


ENGINE
Engine Type
Air Cooled, 4 Cycle Engine OHC
Bore & Stroke
50.0 x 55.6mm
Displacement 109.1cc
Compression Ratio 9.0: 1
Engine Starter System Kick Started Electric Started
Lubricating Oil Capacity 1.0 liter

POWER TRANSMISSION
Clutch Automatic Centrifugal & Multi Wet Clutch
Transmission 4 speed constant mesh
Gear Ratio
1st Gear – 2.615 (34/13) ;
2nd Gear – 1.550 (28/18) ;
3rd Dear – 1.136 (25/22) ;
4th Gear – 0.916 (22/24) ;
Primary Reduction Ration – 4.059 (69/17) ;
Final Reduction Ration – 2.642 (37/14)

ELECTRICAL
Battery
12V-2.5AH (Kick Starter)
12V-3.0AH (Electric Starter)

DIMENSIONS
Overall Length 1925mm
Overall Width 709mm
Overall Height 1084mm
Wheelbase 1221mm

CHASSIS
Frame Backbone
Suspension
Front : Telescopic 81mm
Rear : Twin 80mm
Fuel Capacity 3.7 liter
Tyre Measurement
Front Tyre : 70/90 - 17M/C 38P
Rear Tyre : 80/90-17M/C 50P ;
Caster: 26 degree 00’;
Trail distance: 67mm

PERFORMANCE
Maximum Horse Power 6.22kW/7500rpm
Maximum Torque 8.59Nm /5500rpm
Honda 125X K/S  -S/RIM (ULTIMO)
Honda 125X E/S  -S/RIM (ULTIMO)


ENGINE
Engine Type
Air Cooled, 4 Cycle Engine OHC
Bore & Stroke
52.4 x 57.9mm
Displacement 124.8CC
Compression Ratio 9:3:1
Engine Starter System Kick Started Electric Started
Lubricating Oil Capacity 0.9 liter

POWER TRANSMISSION
Clutch Automatic Centrifugal & Multi Wet Clutch
Transmission 4 speed constant mesh
Gear Ratio
1st Gear – 2.500 (35/14) ;
2nd Gear – 1.550 (31/20) ;
3rd Dear – 1.150 (23/20) ;
4th Gear – 0.923 (24/26) ;

Primary Reduction Ration – 3.350 (67/20) ;
Final Reduction Ration – 2.500 (35/14)
ELECTRICAL
Battery
12V-2.5AH (Kick Starter)
12V-3.5AH (Electric Starter)
DIMENSIONS
Overall Length 1930mm
Overall Width 692mm
Overall Height 1092mm
Wheelbase 1244mm

CHASSIS
Frame Backbone
Suspension
Front : Telescopic 81mm
Rear : Twin 82mm
Fuel Capacity 3.7 liter
Tyre Measurement
Front Tyre : 70/100 - 17M/C 40P
Rear Tyre : 80/90-17M/C 50P ;
Caster: 26 degree 30’;
Trail distance: 73mm

PERFORMANCE
Maximum Horse Power 6.7kW/7500rpm
Maximum Torque 10Nm /5500rpm


Back To Top


YAMAHA



Engine
Type 4-Stroke, Liquid-cooled, SOHC, 4-Valve
Cylinders Vertical Single cyclinder
Displacement 149.8 cm3
Bore x Stroke 57.0 x 58.7 mm
Compression Ratio 10.4 : 1
Maximum Horsepower 11.1kW (8,500/rpm)
Maximum Torque 13.1Nm (7,500/rpm)
Starting System Electric and Kick
Lubrication System Wet Sump
Engine Oil Capacity 1.15 litres
Fuel Tank Capacity 12.0 litres
Carburetor 3C1
Ignition System CDI
Cooling System Liquid-cooled
Battery Capacity Type 12V 3.5 Ah

Transmission
Type Jejaring Berterusan
Primary Reduction Ratio 73 / 34 (3.041)
Secondary Reduction Ratio 42 / 15 (3.041)
Gear Ratios 1st: 34/12 (2.833) ; 2nd: 30/16 (1.875) ; 3rd: 30/21 (1.428) ; 4th: 24/32 (1.142) 5th: 22/23 (0.956)
Clutch Type Wet, Multiple Disc with Coil Spring
Speed Type 5 Speed

Chasis
Frame Type Diamond
Overall Length 2,000 mm
Overall Width 705 mm
Overall Height 1,035 mm
Seat Height 760 mm
Wheelbase 1,282 mm
Min. Ground Clearance 167 mm
Dry Weight 114 kg

Suspensions
Front Telescopic
Rear Monocross

Brakes
Front and Rear Disc / Drum

Tires
Front 2.75– 17 41P
Rear 90/90 – 17M/C 49P


Engine
Engine Oil Capacity 1.2 litres
Ignition System Digital-Advanced Megneto Type CDI

Transmission
Type Constant Mesh 6-speed

Chasis
Overall Length 1,900 mm
Overall Width 675 mm
Overall Height 1,035 mm
Seat Height 752 mm
Wheelbase 1,250 mm
Min. Ground Clearance 135 mm
Dry Weight 101 kg

Brakes
Front and Rear Single Disc Brake


Engine
Cylinders Single Cylinder
Displacement 134 cm3
Bore x Stroke 54.0 X 58.7 mm
Compression Ratio 10.9 : 1
Maximum Horsepower 8.93kW (8,500rpm)
Maximum Torque 11.79N.m (5,500rpm)
Starting System Electric and Kick
Lubrication System Wet Sump
Engine Oil Capacity 0.9 litres
Fuel Tank Capacity 4.0 litres
Carburetor BS25 x 1
Ignition System DC - CDI
Headlight 12v, 32W/32W

Transmission
Type Rotary Type 4-Speed
Primary Reduction Ratio 2.875
Secondary Reduction Ratio 2.600
Gear Ratios 1st: 2.833; 2nd: 1.875; 3rd: 1.353; 4th: 1.045
Clutch Type Automatic Centrifugal / Constant Mesh, Wet Multi - Plate

Chasis
Frame Type Diamond
Overall Length 1,960 mm
Overall Width 695 mm
Overall Height 1,080 mm
Seat Height 775 mm
Min. Ground Clearance 130 mm
Dry Weight 105 kg

Suspensions
Front Telescopic
Rear Monocross

Brakes
Front and Rear Hydraulic Single Disc and Drum

Tires
Front 70/90 - 17
Rear 80/90 - 17


Engine
Cylinders Single Cylinder
Displacement 114 cm3
Bore x Stroke 50.0 x 57.9 mm
Compression Ratio 9.3 : 1
Maximum Horsepower 5.8kW @ 8,500rpm
Maximum Torque 8.6N.m @ 5,500rpm
Starting System Electric and Kick
Lubrication System Force-Feed Lubrication, Wet Sump
Engine Oil Capacity 0.9 litres
Fuel Tank Capacity 5 litres
Ignition System Transistor Control Ignition
Headlight 12V, 35W/35W x 1
Battery Capacity Type GTZ4V

Transmission
Type V-belt automatic
Primary Reduction Ratio 1.000
Secondary Reduction Ratio 9.882
Gear Ratios 2.200 - 0.840
Clutch Type Dry, Centrifugal, Shoe

Chasis
Frame Type Underbone
Overall Length 1,855 mm
Overall Width 700 mm
Overall Height 1,050 mm
Seat Height 745 mm
Wheelbase 1,260 mm
Min. Ground Clearance 130 mm
Dry Weight 90 kg
Wet Weight 94 kg

Suspensions
Front Telescopic
Rear Unit Swing

Brakes
Front and Rear Hydraulic Disc brake

Tires
Front 70/90 - 14MC34P
Rear 80/90 - 14M/C 46P

Electrical
Spark plug CR6HSA, U20FSR-U




Engine
Type Liquid-cooled, 4-Stroke, SOHC, 2-Valve
Cylinders Forward-inclined Single Cylinder
Displacement 124.9 cm3
Bore x Stroke 52.4 x 57.9 mm
Compression Ratio 10.9 : 1
Maximum Horsepower 7.8kW (8,000rpm)
Maximum Torque 10N.m (7,000rpm)
Starting System Electric and Kick
Lubrication System Wet Sump
Engine Oil Capacity 0.9 litres
Fuel Tank Capacity 4.1 litres
Carburetor BS26
Ignition System CDI (digital)

Transmission
Type V-belt automatic
Primary Reduction Ratio 2.625
Secondary Reduction Ratio 3.750
Gear Ratios 2.540 – 0.838
Clutch Type Dry, Centrifugal automatic, Coil Spring

Chasis
Frame Type Steel tube underbone
Overall Length 1,850 mm
Overall Width 685 mm
Overall Height 1,060 mm
Seat Height 750 mm
Wheelbase 1,260 mm
Min. Ground Clearance 125 mm
Wet Weight 104 kg

Suspensions
Front Telescopic
Rear Unit Swing

Brakes
Front and Rear Single Disc Brake and Drum Brake

Tires
Front 70/90 – 14M/C 34P
Rear 90/80 – 14M/C 49P


Engine
Type Liquid-cooled, 4-Stroke, SOHC
Cylinders Forward-inclined Single Cylinder
Displacement 132.6 cm3
Bore x Stroke 54.0 x 57.9 mm
Compression Ratio 10.8 : 1
Maximum Horsepower 8.4kW @ 8,500rpm
Maximum Torque 11.6N.m @ 6,500rpm
Starting System Electric and Kick
Lubrication System Wet Sump
Engine Oil Capacity 0.9 litres
Fuel Tank Capacity 4.8 litres
Carburetor BS26
Ignition System DC – C.D.I
Battery Capacity Type GT Z5S (3.5Ah)

Transmission
Type V-belt automatic
Primary Reduction Ratio 42 / 16 2.625
Secondary Reduction Ratio 42 / 12 3.833
Gear Ratios 1st: 2.273 – 0.822
Clutch Type Dry, Coil Spring

Chasis
Frame Type Steel tube underbone
Overall Length 1.950 mm
Overall Width 678 mm
Overall Height 1,080 mm
Seat Height 770 mm
Wheelbase 1,290 mm
Min. Ground Clearance 130 mm
Dry Weight 105 kg

Suspensions
Front Telescopic
Rear Swing arm

Brakes
Front and Rear Single Disc / Drum brake

Tires
Front 70/90 – 16 36P
Rear 80/90 – 16 48P


 Yamaha LAGENDA 115 Z (K/S)


Engine
Type
Air-cooled, 4-Stroke, SOHC, 2-Valve
Cylinders
Single Cylinder
Displacement
113.7 cm3
Bore x Stroke
50.0 x 57.9 mm
Compression Ratio
9.3:1
Maximum Horsepower
7.4kW (7,750rpm)
Maximum Torque
9.9Nm (6,500rpm)
Starting System
Electric and Kick
Lubrication System
Force-feed lubrication, wet sump
Engine Oil Capacity
1.0 litres
Fuel Tank Capacity
4.05 litres
Carburetor
Fuel Injection
Ignition System
TCI (Transistor Control Ignition)

Transmission
Type
Manual
Primary Reduction Ratio
2.900 (58/20)
Secondary Reduction Ratio
3.154 (41/13)
Gear Ratios
2.833 - 1.045
Clutch Type
Wet, centrifugal

Chasis
Frame Type
Underbone
Overall Length
1,935 mm
Overall Width
680 mm
Overall Height
1,065 mm
Seat Height
765 mm
Wheelbase
1,240 mm
Min. Ground Clearance
125 mm
Wet Weight
100 kg

Suspensions
Front
Telescopic
Rear
Swingarm

Brakes
Front and Rear
Hydraulic Single Disc Brake and Drum Brake

Tires
Front
70/90 - 17 M/C38P
Rear
80/90 - 17 M/C50P


Engine
Type Air-Cooled, 4-Stroke, SOHC 2-Valve
Cylinders Single Cylinder
Displacement 113.7 cm3
Bore x Stroke 50.0 x 57.9 mm
Compression Ratio 9.3:1
Maximum Horsepower 7.4kW (7,750rpm)
Maximum Torque 9.9Nm (6,500rpm)
Starting System Electric and Kick
Lubrication System Force-feed lubrication, wet sump
Engine Oil Capacity 1.0 litres
Fuel Tank Capacity 4.05 litres
Carburetor 'Fuel Injection'
Ignition System TCI (Transistor Control Ignition)

Transmission
Type Manual
Primary Reduction Ratio 2.900 (58/20)
Secondary Reduction Ratio 3.154 (41/13)
Gear Ratios 2.833 - 1.045
Clutch Type Wet, Centrifugal

Chasis
Frame Type 'Underbone'
Overall Length 1,935 mm
Overall Width 680 mm
Overall Height 1,065 mm
Seat Height 765 mm
Wheelbase 1,240 mm
Min. Ground Clearance 125 mm
Wet Weight 100 kg

Suspensions
Front Telescopic
Rear Swingarm

Brakes
Front and Rear Hydraulic Single Disc Brake and Drum Brake

Tires
Front 70/90 - 17 M/C38P
Rear 80/90 - 17 M/C50P




External Links


© 2014 OIOI Group. All Right Reserved.
